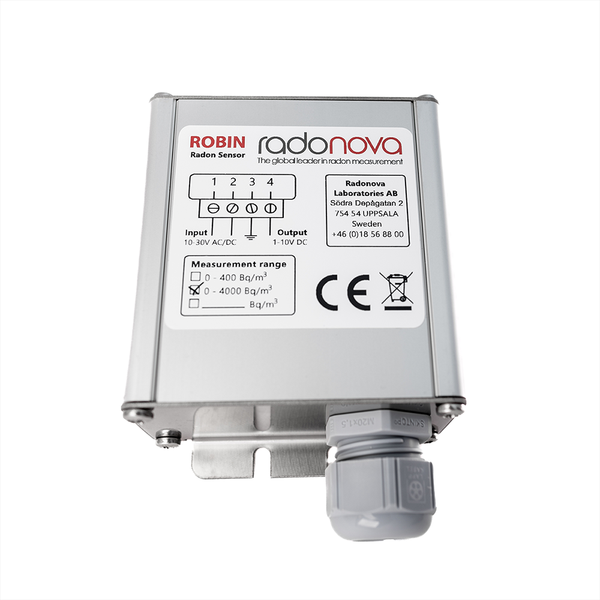

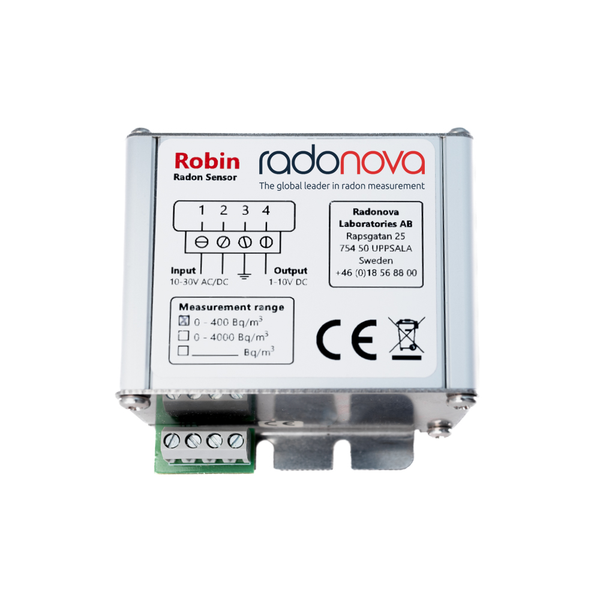

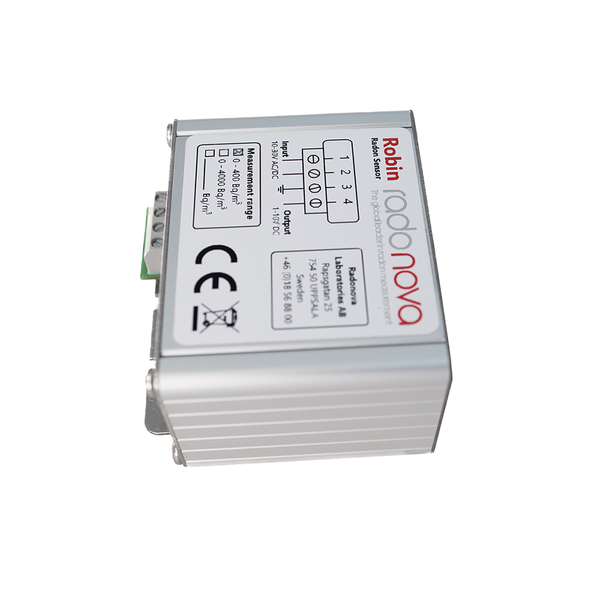

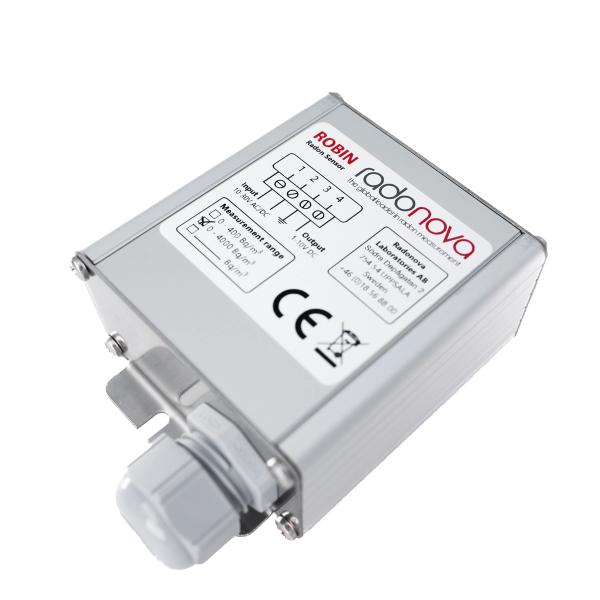

ROBIN - Fixed Installation Radon Sensor
$749.95
ROBIN is a professional radon sensor for fixed installation in smart homes, radon monitoring, radon evacuation or installation in air handling units and exhaust air fans.
Highly Accurate
In Stock for Immediate Delivery!
Select Model
ROBIN Residential (0-110 pCi/L - 24V)
Select Quantity
Loading...
Article: 300945
Why Choose ROBIN?
- Professional radon sensor designed to be able to provide instantaneous values
- Can be installed in any direction
- Connects to a fan controller, PLC, or device suitable for analog input signals
- Able to be placed in ventilation ducts, air handling units, or just stationary in a room
- High sensitivity so a sufficiently good response time is achieved in the event of changes in radon content
- EMC protection and easy connection to thyristor control
The ROBIN Sensor in Detail
Permanently installed for peace of mind
Radonova has developed the radon sensor ROBIN which measures the radon content of the air in Bq / m³ and gives an analog output signal of 1-10V, proportional to the concentration of radon in air. The signal from the sensor can be connected to a controller and used for, for example, fan control. A model of the sensor has the measuring range is 0-400 Bq / m³ where 10V represents the radon content 400 Bq / m³ and 1 V corresponds to 0 Bq / m³.
Quick installation
The radon sensor is protected against electromagnetic interference and can be connected to a thyristor controller. The sensor is mountable without directional dependence and can be permanently installed in a room, ventilation duct, or air handling unit.
Customized sensitivity
If desired, the measuring range can be defined by the customer. For custom sensitivity settings, please contact sales@radonova.com for customized ROBINs as low as $1,499.95.
Technical specifications
| Measurement principle | Filtered diffusion to high voltage measurement chamber |
| Detection principle | Alpha spectrometry |
| Output | 1-10V proportional to the radon content |
| Measurement range | 0-400 Bq/m³ or 0-4000 Bq/m³. Possible to customize measurement interval |
| Maximum range | 0 – 100 000 Bq/m³ |
| Incertitude | About 25% @ 200 Bq/m³ |
| Time resolution | 1 hour |
| Connection | 4-pole connector block |
| Weight | 240 g |
| Dimension | 60 x 76 x 45 [mm] |
| Power supply | 10 – 30 V DC or AC |
| Power consumption | < 50 mW |
| Temperature range | 0 – 70ºC storage, 0 – 60ºC operation |
Technical specifications (extended humidity and dust cover)
| Measurement principle | Filtered diffusion to high voltage measurement chamber |
| Detection method | Alfa spectrometry |
| Output | 1-10V proportional to the radon content |
| Measurement range | 0-400 Bq/m³ or 0-4000 Bq/m³. Possible to customize measurement interval |
| Maximum range | 0 – 100 000 Bq/m³ |
| Incertitude | About 25% @ 200 Bq/m³ |
| Time resolution | 1 hour |
| Cable feed through | M20 |
| Connection | Sheated cable with 4 wires. Internally connected terminal block. |
| Weight | 285 g |
| Dimension | 80 x 76 x 45 [mm] |
| Power supply | 10 – 30 V DC or AC |
| Power consumption | < 50 mW |
| Temperature range | 0 – 70ºC storage, 0 – 60ºC operation |
| Moisture protection | Enchanced moisture protection with internal thermal load and varnish |
FAQ About ROBIN
Why should radon professionals trust ROBIN?
Radonova has been developing the world’s most trusted radon detection and monitoring devises for over 30 years. We are trusted in over 50 countries and have the most thorough accreditations over multiple continents.
What is the mesuring level for ROBIN?
ROBIN Basic (Residential) 0-400 Bq / m³ or ROBIN Commercial 0-4000 Bq / m³. Other measuring ranges are possible as an option, specify when ordering.
How long does the process take?
The turn around time for an accurate reading is 1 hour.
How big is ROBIN?
ROBIN is Length 80 x Width 76 x Height 45 [mm].
Do you have professional ground measuring instruments?
Yes! We have the MARKUS which provides accurate ground radon levels.
